ABOUT Xiphra Site Encryptor



Delivering Xiphra’s unparalleled performance and efficiency to server rooms of medium-to-large offices.
  Seamless Fit.

Protecting communications between two sites. Servising Xiphra Personal Encryptors and other remote access clients.

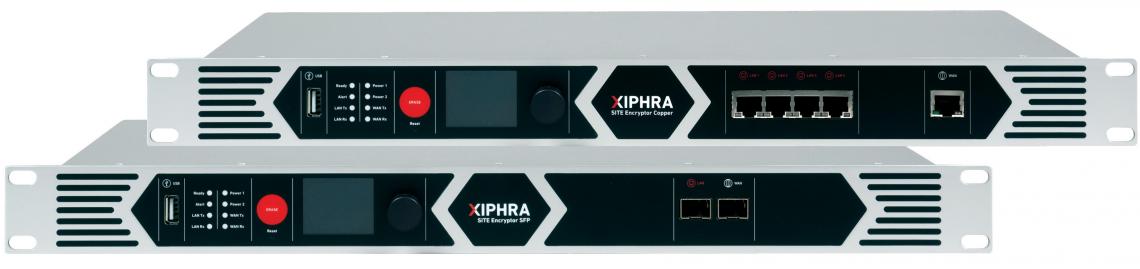

Available in two variations, Xiphra can be used in any network without additional investments into existing infrastructure. Xiphra Site Encryptor SFP features two SFP connectors, allowing use of optical interfaces. Meanwhile, Xiphra Site Encryptor Copper integrates a switch that enables four different devices connect directly to your encryptor.




  Best-in-Class Efficiency.

Operating at its full speed, Xiphra Site Encryptor consumes less than 12 W.

Thanks to their meticulous design centered on hardware, Xiphra encryptors do not only deliver high performance and security, but also have low power consumption requirements. Put into perspective, Xiphra Site Encryptor demonstrates consumption levels more than 50% less than closest competing IPsec encryption solution.


1 Gbit/s
8 µs
12 W
3 kg

of throughput


latency
at 80 bytes packet size

of power consumption

for easy handling

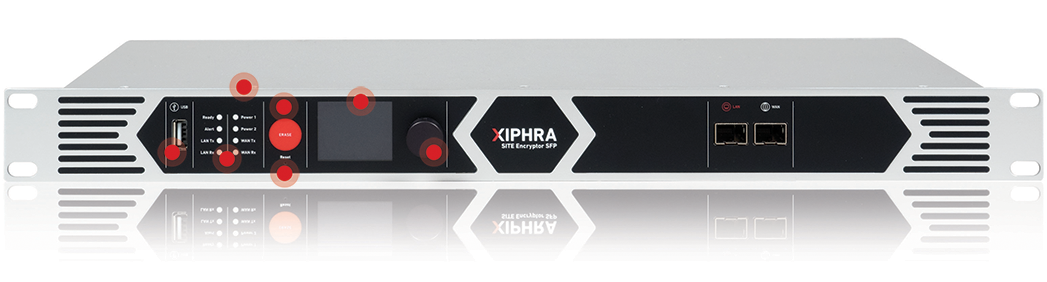

  Easy to use.

Protected and user-friendly.


Setup and upgrade your Xiphra Site Encryptor in few steps using Xiphra USB flash drive.


LED lights indicate operational states of your device, power status and network activity status.


Temper-evident labels, customer temper-proof screws (licensed only to us) along with number of other mechanisms prevent unauthorized intrusions.


To have Xiphra Site Encryptor protected from unexpected activations or reconfigurations, we placed RESET button on the front panel.


In case of urgency, pressing ERASE button will erase all cryptographic keys and parameters on Xiphra Site Encryptor.


Monitor progress in configuring your device. Enter PIN. Check status of your device.


Communicate with Xiphra Site Encryptor using selector knob.

Licensing.

Each Xiphra Encryptor provides different licensing options to meet your needs.



Pro Option


Device license
100 Mbit/s
100 Tunnels

Including:
Xiphra USB
Power supply cabling
M6 screws




Enterprise Option


Device license
250 Mbit/s
100 Tunnels

Including:
Xiphra USB
Power supply cabling
M6 screws




Ultimate Option


Device license
1 Gbit/s
100 Tunnels

Including:
Xiphra USB
Power supply cabling
M6 screws

SPECIFICATIONS



  Functional Specifications.
Network Traffic Protection

  • ESP tunnel mode
  • Firewalls all non-approved traffic arriving from both public and private networks
  • CNSA and NSA Suite B algorithms
    • Authenticated symmetric encryption AES-GCM-256 with 128 bit ICV
    • Elliptic Curve Diffie-Hellman (ECDH) ephemeral key agreement with the NIST P-384 and P-521 elliptic curves
    • Elliptic Curve Digital Signature Algorithm (ECDSA) with the NIST P-384 and P-521 elliptic curves
    • Message Digests with SHA-384 and SHA-512
  • Special Algorithm Options (please contact us for more information)
    • Authenticated Encryption with Keccak spongeWrap in Duplex construction
    • Authenticated Encryption with Keyak v1 in DuplexWrap Mode
    • Authenticated Encryption with Keyak v2 in Motorist Mode
    • Quantum Resistant public key cryptography
    • ECDH with E-521 and Curve25519
    • Message Digests with SHA-3


Additional Security Features

  • CC EAL4+ certified random number generator
  • Device pre-boot authentication
  • Physical security mechanisms:
    • Ruggedized enclosure and screws
    • Tamper-evident labels over all detachable parts of the chassis
    • Tamper-reactive mechanisms inside of encryptor

  Physical and Environmental Specifications.
Dimensions
1U Rack Mount

Weight
3 kg

Operating voltage
100 – 240 VAC +/- 10%

Power (max.)
12 W

Operating temperature
0° to 55° C

Operating humidity
30% - 95% RH (non-condensing)
