Xiphra Office Encryptor

EVALUATE PRODUCT

ABOUT Xiphra Office Encryptor

Combining nimbleness of Xiphra Personal Encryptor with extensibility of Xiphra Site Encryptor.

Extended Connectivity in a Small Package.

Addressing security needs of a small office. Supporting a single user in sharing a secure connection of different devices in addition to a personal computer.

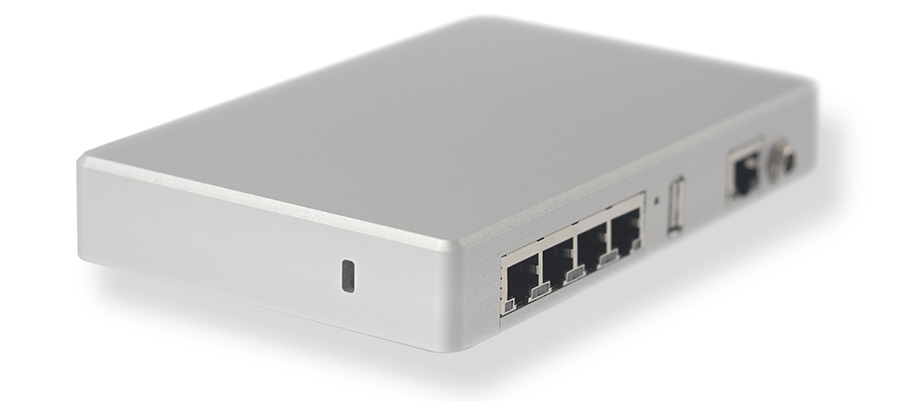

Just like its server counterpart, Xiphra Office Encryptor integrates a switch that enables you to attach up to three other devices in addition to your PC; for example a printer or VoIP phone. Enclosed in a highly portable and light casing, it introduces a display, a rotary encoder as well as a number of LEDs to allow for convenient configuration and operation.

Portable Security at Highest Level.

Assuring confidentiality, integrity and availability of your traversing information at highest levels by utilizing hardware-based data encryption.

Just like its Xiphra counterparts, Xiphra Office Encryptor implements state-of-the art algorithms, including CNSA and NSA Suite B algorithms, that ensure government-grade security of your information. At the same time - thanks to its extremely powerful processing device - Xiphra OE operates with minimal latencies accompanied with high throughput and low power consumption.

1 Gbit/s	8 µs	6 W	0.5 kg
of throughput	latency at 80 bytes packet size	of power consumption	for easy handling

Perfect Office Companion.

Its noiceless operation combined with small form factor and number of extensibility features make Xiphra Office Encryptor your perfect office companion.

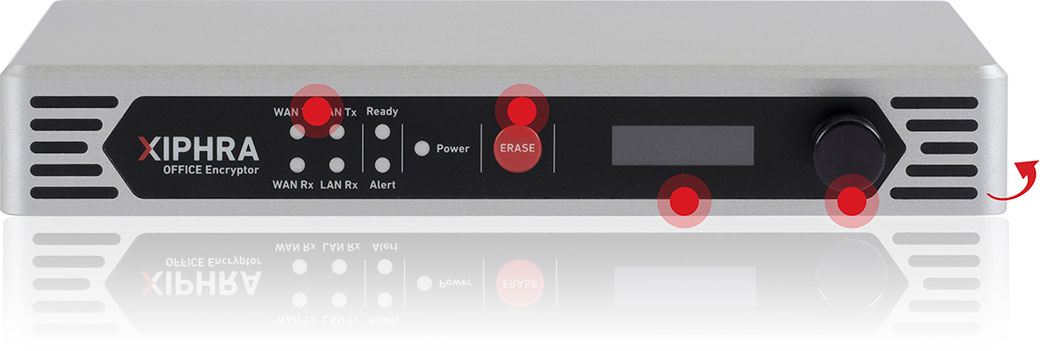

LED lights indicate operational states of your device, power status and network activity status.

In case of urgency, pressing ERASE button will erase all cryptographic keys and parameters on Xiphra Office Encryptor.

Monitor progress in configuring your device. Enter PIN. Check status of your device.

Communicate with Xiphra Office Encryptor using selector knob.

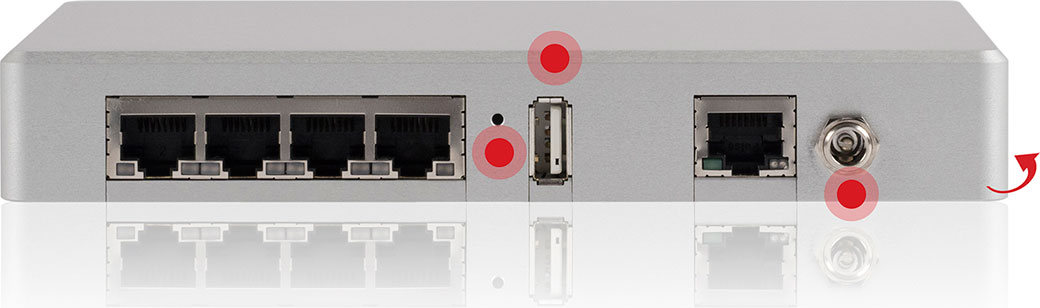

To have Xiphra Office Encryptor protected from unexpected activations or reconfigurations, we placed RESET button on device's back panel.

Setup and upgrade your Xiphra Office Encryptor in few steps using Xiphra USB flash drive.

Threaded power supply connection ensures steady operation in even most demanding situations.

Licensing.

Each Xiphra Encryptor provides different licensing options to meet your needs.

Pro Option

Device license
100 Mbit/s
10 Tunnels

Including:
Xiphra USB
Power supply cabling

Enterprise Option

Device license
250 Mbit/s
10 Tunnels

Including:
Xiphra USB
Power supply cabling

Ultimate Option

Device license
1 Gbit/s
10 Tunnels

Including:
Xiphra USB
Power supply cabling

SPECIFICATIONS

Functional Specifications.

Network Traffic Protection

ESP tunnel mode
Firewalls all non-approved traffic arriving from both public and private networks
CNSA and NSA Suite B algorithms
- Authenticated symmetric encryption AES-GCM-256 with 128 bit ICV
- Elliptic Curve Diffie-Hellman (ECDH) ephemeral key agreement with the NIST P-384 and P-521 elliptic curves
- Elliptic Curve Digital Signature Algorithm (ECDSA) with the NIST P-384 and P-521 elliptic curves
- Message Digests with SHA-384 and SHA-512
Special Algorithm Options (please contact us for more information)
- Authenticated Encryption with Keccak spongeWrap in Duplex construction
- Authenticated Encryption with Keyak v1 in DuplexWrap Mode
- Authenticated Encryption with Keyak v2 in Motorist Mode
- Quantum Resistant public key cryptography
- ECDH with E-521 and Curve25519
- Message Digests with SHA-3

Additional Security Features

CC EAL4+ certified random number generator
Device pre-boot authentication
Physical security mechanisms:
- Ruggedized enclosure and screws
- Tamper-evident labels over all detachable parts of the chassis
- Tamper-reactive mechanisms inside of encryptor

Physical and Environmental Specifications.

Dimensions
Desktop

168 mm x 107 mm x 22 mm

Weight
0.5 kg

Operating voltage
100 – 240 VAC +/- 10%

Power (max.)
6 W

Operating temperature
0° to 55° C

Operating humidity
30% - 95% RH (non-condensing)
